CLASS FR BLACK images
- Weight
- 18.9 oz/yd²
- Material
- Polyester AT 990 denier
- Finish
- 2-side matte varnish
Class-FR

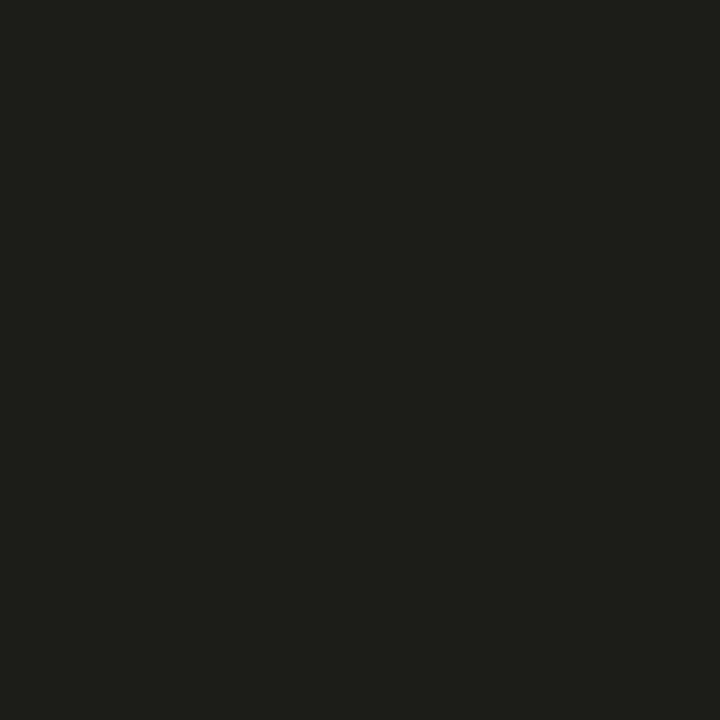

CLASS FR BLACK
Reference: 67044
PVC-coated, phthalate-free fabric with a smooth finish. Available in 63" width.
Sauleda Class FR is a waterproof, phthalate-free technical fabric with great stability and mechanical resistance, designed to meet fire-resistance requirements. Extra-smooth appearance with a double-sided lacquered finish. Ideal for shade sails and other sun protection applications.
Certifications
IVK Europe
SAULEDA SUSTAINABLE
Certificación de calidad y medio ambiente
En Sauleda somos fieles a nuestro compromiso de innovar constantemente para cumplir nuestra misión principal: Hay un movimiento que está cambiando el mundo y tú puedes ser parte. Se trata de cuidar el medioambiente, el hogar de todos, donde nace la vida. Queremos compartir contigo esta consciencia ecológica y que nos ayudes a promoverla. Solo así podremos seguir cumpliendo nuestra visión.
T2 CLASS-FR Certificate
Vinyl Plus
Data Sheet
-
ColorsBlack
-
Weight18.9 oz/yd²
-
Tensile strength warp764 lbf/2 in
-
Tensile strength Fill674 lbf/2 in
-
Tear strength warp70 lbf
-
Tear strength Fill58 lbf
-
Roll length54.7 yd
-
MaterialPolyester AT 990 denier
-
Finish2-side matte varnish
-
Composition100% Polyester
-
Coating21.7 mil PVC & 26.8 mil PVC
-
Adhesion22.5 lbf/2 in
-
Fire ratingCA Title 19; NFPA 701
-
Temperature resistance-22°F to 158°F
-
Width63"
Care & Maintenance
Maintenance, cleaning and storage of Sauleda technical fabrics:
- Clean the fabric periodically. Remove solid residue from the surface with a chamois.
- If that is not enough, clean with water and a little neutral soap, then rinse thoroughly.
- Occasionally, and always after a test in a hidden area, you may use a chamois dampened with alcohol, or 10% diluted bleach followed by abundant rinsing.
- Before storing the fabric, dry the whole surface carefully and keep it in a dry, protected place.
- Avoid abrasive products, steam, hydrocarbons, solvents and strong acids or bases.
- Check for worn or torn areas and inspect the condition of the welds.
Warranty
Sauleda Class FR carries a 7-year warranty against abnormal damage to the fabric and its color under normal exposure and use, provided the fabric has been maintained, cleaned and stored as instructed.
- The warranty starts on the date of the delivery note. Keep the installer's sales invoice: it is required to make a claim.
- It covers only the cost of the fabric, according to the year in which the defect appears: year 1, 100%; year 2, 80%; year 3, 60%; year 4, 40%; year 5, 20%; year 6, 10%; year 7, 5%.
- At delivery, the fabric meets the specifications of its technical data sheet.
Not covered: hardware, mechanisms and structures; fabrication, installation and maintenance; normal aging and wear; damage from incorrect installation or abrasive cleaning; misuse, accidents, abnormal weather, pollution, fire or vandalism. Contact Sauleda USA to start a warranty claim.
Frequently Asked Questions
Is Class FR flame-retardant?
Yes. It is designed to meet fire-resistance requirements and is rated CA Title 19 and NFPA 701.
Is it waterproof?
Yes. Class FR is a waterproof technical fabric with a double-sided lacquered finish, and it is phthalate-free.
What is it used for?
Shade sails and other sun protection applications. It is weldable and graphics-receptive.
What width and roll length are available?
63" wide, in rolls of 54.7 yd.
What warranty does it have?
A 7-year warranty on the fabric, starting on the delivery date, with coverage that decreases each year (100% in year 1 down to 5% in year 7).
How do I clean it?
Remove residue with a chamois, then clean with water and neutral soap and rinse thoroughly. Avoid abrasive products, steam and solvents.
